GKTech Scion Subaru Toyota 5x100 to 5x114.3 FR-S / GR86 / BRZ bolt on conversion spacer - Standard Studs

The GKTech 5x100 to 5x114.3 Bolt-On Conversion Spacers are a simple and effective way to convert your FR-S, GR86, or BRZ from the stock 5x100 bolt pattern to the more common 5x114.3, unlocking a much wider selection of aftermarket wheels. Designed with pre-installed standard-length studs, this spacer is a bolt-on solution that maintains proper hub-centric fitment and wheel alignment.

Each spacer is CNC-machined from billet aluminum for strength and precision, and includes all necessary hardware for installation. Perfect for street cars or drift builds looking to expand wheel fitment options without swapping hubs or control arms.

Key Features:

• Converts 5x100 to 5x114.3: Run wheels from S-chassis, Z-cars, and other platforms

• Standard-Length Studs: Matches OEM stud length for typical wheel setups

• Bolt-On Design: No hub machining or permanent modification required

• High-Quality Materials: CNC-machined billet aluminum with pressed-in studs

Specifications:

• PCD Conversion: 5x100 → 5x114.3

• Material: Billet aluminum

• Studs: M12x1.25 (standard-length)

• Spacer Thickness: ~25mm

• Install Time: ~1 hour

Compatibility:

• Toyota FR-S (ZN6)

• Toyota GR86 (ZN8)

• Subaru BRZ (ZC6 / ZD8)
  For use with factory 5x100 hubs only.

What’s Included:

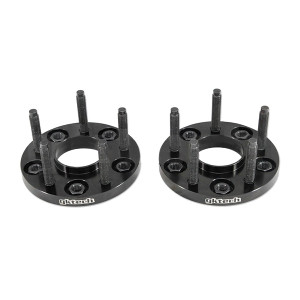

• (2) 5x100 to 5x114.3 bolt-on spacers

• (10) Open-ended nuts for securing spacers to hubs

Notes:

• Ensure wheel and fender clearance with +25mm added track

• Torque to manufacturer spec and recheck after first drive

• Not compatible with hub-centric wheels that don’t allow spacer thickness

• Always confirm lug nut engagement with your chosen wheels

Get the fitment freedom your build deserves with GKTech’s 5x114.3 Conversion Spacers—the cleanest way to upgrade your wheel options without swapping hubs.
