ACT 85-92 Mazda RX-7 FC Push Type Mod-Twin 225 HD Rigid Street Clutch Kit - T1S-MZ02
ACT
$1,477.00
$1,894.00
(You save
$417.00
)
Write a Review
ACT
ACT 85-92 Mazda RX-7 FC Push Type Mod-Twin 225 HD Rigid Street Clutch Kit - T1S-MZ02
Specifications
| Item Description | ACT Mod-Twin 225 Heavy Duty Rigid Street Clutch Kit |
|---|---|
| Product Weight (lbs.) | 25.9 |
| Torque Capacity (ft/lbs.) | 625 |
| Torque Capacity Over OE | 119% |
| Disc Material | Organic |
| Clutch Disc Diameter (Inches) | 8.8 |
| Clutch Disc Diameter (Millimeters) | 225 |
| Input Shaft Diameter (inches) | 1 |
| Pressure Plate Type | Heavy Duty |
| Warranty | 12 Months (view details) |
| SFI | 1.2 |
Description

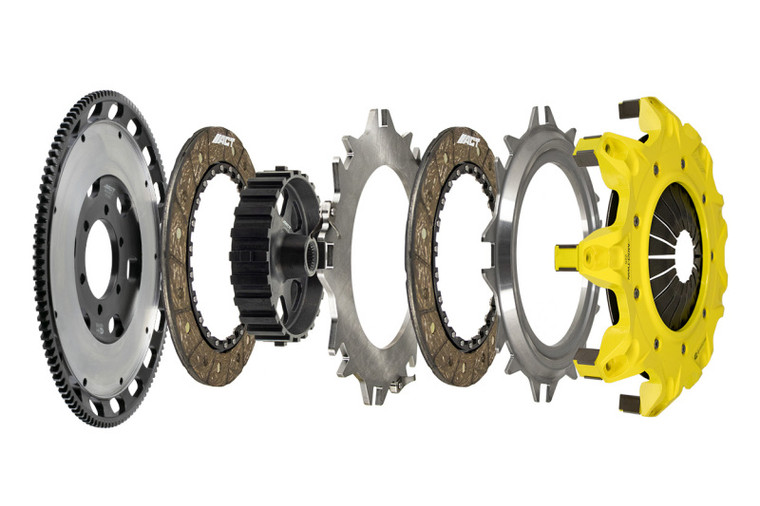

T1S-MZ02 Mod-Twin 225 HD Rigid Street Kit blends easy pedal feel, smooth but positive engagement with quick shifting for high powered AWD’s by combining twice the organic friction surfaces with a no-nonsense rigid Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process. Steel-backed Friction Plates with high quality organic friction materials deliver stable friction coefficient, good heat capacity and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive chrome-moly hub which is heat treated for strength and durability extending input shaft life with one continuous spline. The lightweight, rigid design allows for quicker shifts and trouble-free service. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, rigid Mono-Drive hub, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.
| Feel | Soft progressive engagement, light pedal effort, smooth shifting, with mild to moderate transmission gear noise |
|---|---|
| Life | Forged Aluminum Cover, Mono-drive hub, exclusive diaphragm, premium friction materials, and hardened wear points ensure this long-life twin performs and survives under the most demanding conditions |
| Quality | Delivers maximum performance and high heat tolerance by combining robust design, strategic features, choice materials, and close tolerances |
| Recommended Use | Street or Street/Strip |
| ACT Difference | Applying tactical engineering to the Mod-Twin, ACT presents unique solutions to common tradeoffs found on twin disc clutches, resulting in an ultra-durable, customer serviceable, long-lasting clutch with very high torque capacity. All are 100% clamp load tested, balanced and SFI certified |
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1988 | Mazda | RX-7 | 10th Anniversary |
| 1986-1991 | Mazda | RX-7 | Turbo |
- LTL:
- N
- MPN:
- T1S-MZ02
- Proposition 65:
- Y
- Special Order:
- Y
-
-
-
