DD-EFI Pro Dash

Megasquirt Digital Dash

10.3″ Digital Dash PNP with Universal Bezel

Build Time up to 6 weeks

The DD-EFI 10.3″ Widescreen Digital Dash is the 1st fully Plug-N-Play Digital Dash that can be installed using any Megasquirt equipped vehicle.  The main focal point is the 10.3″ Ultra Widescreen giving you a huge real estate for displaying your custom dashboard/gauges.  This is an all-in-one enclosure for direct installation into your vehicle.

Internal I/O Module – provides (7) Digital Inputs, (5) Analog Inputs, (1) Fuel Level Input, (2) PWM Outputs, & (2) Speed Inputs.  This provides the much needed additional inputs such as Turn Signals, High Beam, Oil Pressure, Fuel Level, Push Button Start, etc.

CanBus Communication – I/O expansion via CanBus to the MS ECU providing 5 additional sensor inputs, dedicated fuel level input, 7 digital inputs, (2) speed inputs, and 2 PWM capable outputs.

Built-in Internal GPS – provides a solution to commonly requested need for Speedometer, but also gaining the abilities for Latitude/Longitude, and Economy and Performance Fields.

Universal Bezel – This is the Universal Digital Dash, which includes a front bezel that can be cut-to-fit your particular vehicle/application.  It is 6″ Height by 15″ Wide giving you ample amount of room to be mounted in your factory instrument cluster housing or mounted directly to your dash.  Custom bezel’s can be made by inquiring to sales@dd-efi.com.

Plug and Play Features

• • CanBus Communcation to your MS ECU
  • Internal I/O Module
    • (7) Digital Inputs
    • (5) Analog Inputs
    • (1) Fuel Level Input
    • (2) PWM Outputs
  • Built-in & Customizable Splash Screen

• • In-Dash Tuning Capabilities – Full Version of Tunerstudio

• • Customizable Dashboards

• • Internal GPS Module for Vehicle Speed, but also:
    • Latitude & Longitude
    • Fuel Economy
    • Odometer
    • Trip Meter
  • Automatic Datalog Recording:
    • 32GB Internal Storage
    • Automatically stops datalog and saves your projects tune file
  • Sleep Mode
    • Hibernates after Ignition is removed
    • Shutdown preset to 60 minutes after Ignition remains off
    • User configurable shutdown timing

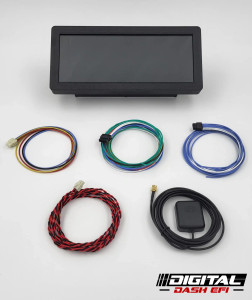

What’s Included

• DD-EFI Digital Dash
  • 10.3″ Full Color LCD Screen
  • Internal GPS
  • 32GB Internal Storage
• Power Supply Connector:
  • Red – 12V Battery
  • Black – Ground
  • Yellow – 12V Ignition (Switched)
  • Blue – Door/Dome Light Trigger (Optional 12V+)
  • CanBus – H/L to MS ECU
• Pre-Installed Software
  • TunerStudio
  • MegaLogViewer
  • Any Desk

Digital Dash Dimensions

• Universal Bezel: Height 6″ x Width 15″
• 10.3″ Display Area: Height 3.6″ x Width 9.6″
• 10.3″ Surround: Height 4.8″ x Width 10.9″ x Depth .625″
• DD-EFI Computer: Height 5.125″ x Width 8.3″ x Depth 1.375″
• Overall Depth: 2.25″
