DD-EFI Pro Dash

Megasquirt Digital Dash

10.3″ Digital Dash PNP with Universal Mount

Build Time up to 6 weeks

The DD-EFI 10.3″ Widescreen Digital Dash is the 1st fully Plug-N-Play Digital Dash that can be installed using any Megasquirt equipped vehicle.  The main focal point is the 10.3″ Ultra Widescreen giving you a huge real estate for displaying your custom dashboard/gauges.  This is an all-in-one enclosure for direct installation into your vehicle.

Internal I/O Module – provides (7) Digital Inputs, (5) Analog Inputs, (1) Fuel Level Input, (2) PWM Outputs, & (2) Speed Inputs.  This provides the much needed additional inputs such as Turn Signals, High Beam, Oil Pressure, Fuel Level, Push Button Start, etc.

CanBus Communication – I/O expansion via CanBus to the MS ECU providing 5 additional sensor inputs, dedicated fuel level input, 7 digital inputs, (2) speed inputs, and 2 PWM capable outputs.

Built-in Internal GPS – provides a solution to commonly requested need for Speedometer, but also gaining the abilities for Latitude/Longitude, and Economy and Performance Fields.

Universal Mount – This is designed to be able to mounted anywhere utilizing its 4 threaded inserts.  So if you mounting it to a roll bar or steering column for drag racing, HDPE/Road Racing, AutoX, etc.

Plug and Play Features

• • CanBus Communcation to your MS ECU
  • Internal I/O Module
    • (7) Digital Inputs
    • (5) Analog Inputs
    • (1) Fuel Level Input
    • (2) PWM Outputs
  • Built-in & Customizable Splash Screen

• • In-Dash Tuning Capabilities – Full Version of Tunerstudio

• • Customizable Dashboards

• • Internal GPS Module for Vehicle Speed, but also:
    • Latitude & Longitude
    • Fuel Economy
    • Odometer
    • Trip Meter
  • Automatic Datalog Recording:
    • 32GB Internal Storage
    • Automatically stops datalog and saves your projects tune file
  • Sleep Mode
    • Hibernates after Ignition is removed
    • Shutdown preset to 60 minutes after Ignition remains off
    • User configurable shutdown timing

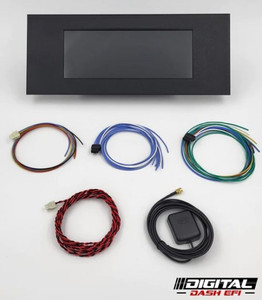

What’s Included

• DD-EFI Digital Dash
  • 10.3″ Full Color LCD Screen
  • Internal GPS
  • 32GB Internal Storage

• Universal Mount
  • Includes 4 Mounting Location with metal threaded bosses

• Power Supply Connector:
  • Red – 12V Battery
  • Black – Ground
  • Yellow – 12V Ignition (Switched)
  • Blue – Door/Dome Light Trigger (Optional 12V+)
  • CanBus – H/L to MS ECU

• Pre-Installed Software
  • TunerStudio
  • MegaLogViewer
  • Any Desk

Digital Dash Dimensions

• Universal Mount: Height 4.82″ x Width 10.75″
• 10.3″ Display Area: Height 3.6″ x Width 9.6″” x Depth .79″
• DD-EFI Computer: Height 5.125″ x Width 8.3″ x Depth 1.375″
• Overall Depth: 2″
